GrandPak UHT sterilizer is a tubular sterilizer developed in cooperation with European top equipment manufacturers and combined with China's national conditions. The machine has modular design, reasonable structure, advanced process and less floor space, high sterilization efficiency and stable operation. It is made up of several groups of tubes effectively combined according to the technological process, and can complete heating, heat preservation, heat recovery and cooling at the same time in the same unit. The centralized control of sterilization temperature automatic control, recording, alarm can be realized through PLC, with high degree of automation, operating in a stable manner.

The mixer developed independently by GrandPak Company adopts flowmeter control to monitor and control pressure, temperature and liquid level automatically. The mixer equipped with high efficiency deoxidization system, high precision sugar-water mixing system and high efficiency carbonization system is mainly suitable for the mixed processing of various carbonated beverages, and also for the mixed processing of other soft drinks. The machine has compact structure, fine workmanship, and meets the requirements of international food hygienic standards. Its technical performance and indicators are in the leading position in China.

It is used to deareate the materials preheated by UHT; equipped with aromatic recovery device. It adopts PLC centralized control, with high degree of automation and its operation is stable.

These machines is suitable for pasteurizing filled can products and spray cooling of PET bottles after hot-filling, and can also be used for warm bottles after filling of gas-containing beverages. The world famous INTRALOX polypropylene mesh belt is adopted, which has an excellent industrial quality, meets the requirements of food hygiene, and is durable with less maintenance workload. There are four temperature zones: heating, heat preservation, pre-cooling and cooling. As per the process requirements, the temperature of heating, insulation and pre-cooling sections can be accurately controlled by PID controlling pneumatic membrane regulating valve, and the time of heat preservation and sterilization can be adjusted by frequency conversion speed regulation.

This machine is suitable for spray cooling of PET bottles after hot-filling, and can also be used for warm bottles after filling of gas-containing beverages. The world famous INTRALOX polypropylene mesh belt is adopted, which has an excellent industrial quality, meets the requirements of food hygiene, and is durable with less maintenance workload. There are four temperature zones: heating, heat preservation, pre-cooling and cooling. As per the process requirements, the temperature of heating, insulation and pre-cooling sections can be accurately controlled by PID controlling pneumatic membrane regulating valve, and the time of heat preservation and sterilization can be adjusted by frequency conversion speed regulation.

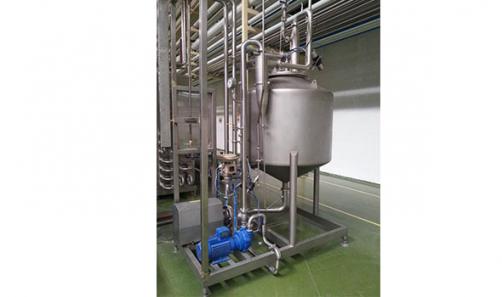

When PET cold aseptic filling is performed, there is no reflux at filling, and the product UHT equipment can not be stopped (with long start and stop duration, and there is product loss), so aseptic tank is needed to buffer.

Ultra-high temperature sterilization method is used to prepare aseptic water. It is mainly used for rinsing the inner and outer walls of bottle washer and bottle mouth, rinsing the bottle mouth before screwing the cap by capper, rinsing the bottle cap, rinsing COP and SIP, etc.

It performs in-situ cleaning to UHT and its supporting pipeline system, filling valve, aseptic tank, aseptic balancing tank and other parts directly in contact with product; acid and alkali liquids used in CIP system are recycled, efficient and energy-saving; the cleaning process is controlled automatically.

It is used to prepare peracetic acid disinfection for disinfection of disinfectant bottle washer, bottle cap, aseptic water, aseptic air pipeline, etc.
